Drive products by innovation, promote brand by technology, continuously cultivate automotive lighting field more than ten years, constantly lead development of the industry, and is dedicated to becoming the independent premium supplier serving high quality customers.
Vehicle Light
Lighting modules
Vehicle Light electric control modules
-
Vehicle Light
-
Lighting Modules
-
Vehicle Light Electric Control Modules

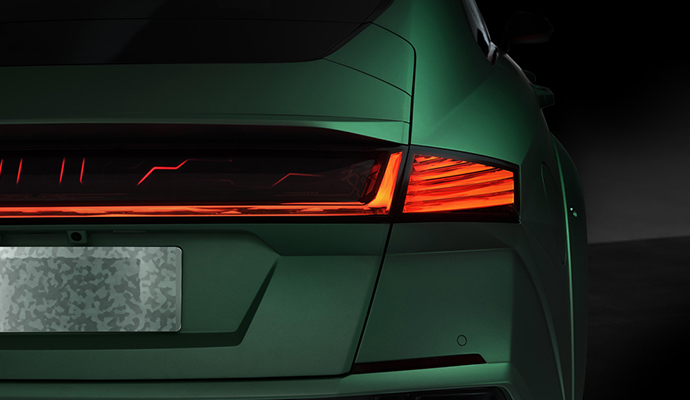

RGB MiniLED Array Technology is adopted to realize colorful welcomre/farewell animation and Graphic display interactiion functionalities via fully in-house design driver controller.
-

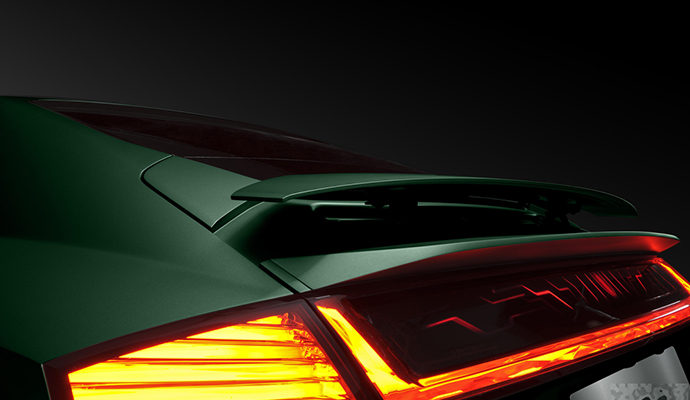

Mini-LED Interactive Display
-
MiniLED Interactive DisplayState-of -the-art High definition Intelligent Graphic display, include 288k pixels within 96k LEDs, and ultimate technologies creativity is enabling interaction re-constructed.
- It is able to realize the exchanges of multi-scenarios among people, vehicle and enviroments.
- Customized high definition graphic display, re-construct specific lighting effect.
- Rhythimc lighitng show can be realized with the coordination of rear light to reflect the sense of driving ritual.
We are leading the trend by long term innovation.
To meet customer requirement by enabling complex products and process more efficient and safe.
We are on the way to continue invest in R&D and innovation.
-
22mm*44mmMulti-lens Module -
15mm*100mm ultra narrowHigh beam, Low Beam and ADB Modules
-

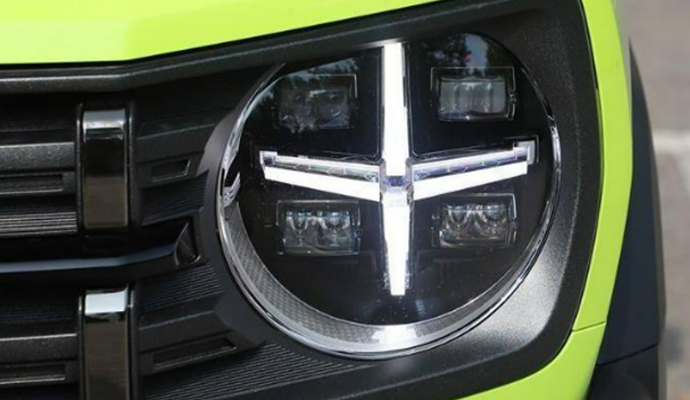

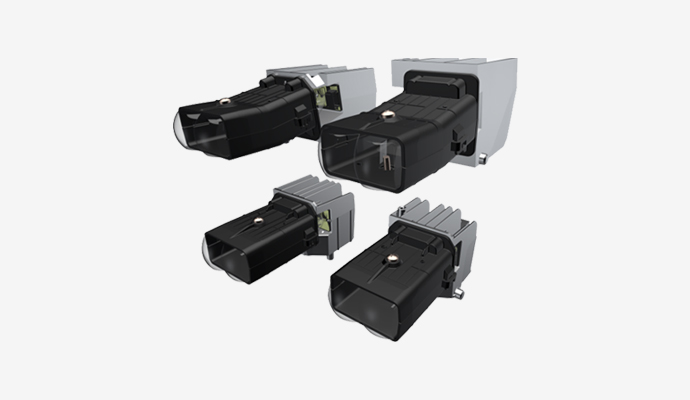

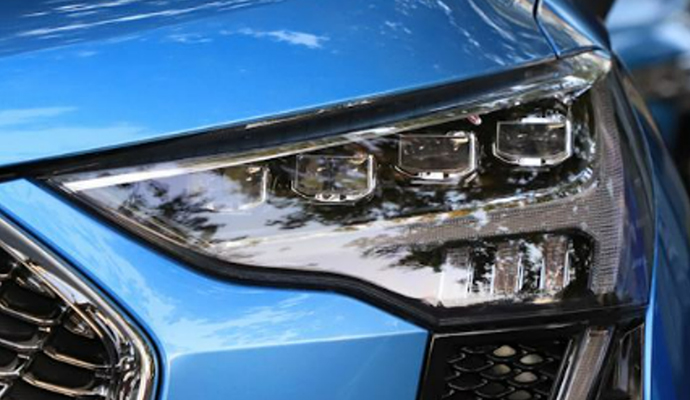

22mm*44mm multi-lens modulesSequence multiple 22mm*44mm size of lens through any forms to achieve lighting function.
- Small and exquisite lens size, and the appearance is brilliant and bright
- Independent multiple lens to match headlamp styling
- Extraordinary road lighting performance: LB 1,000lm, HB 1,600lm, CNCAP>8 mark
- Passive heat dissipation
-

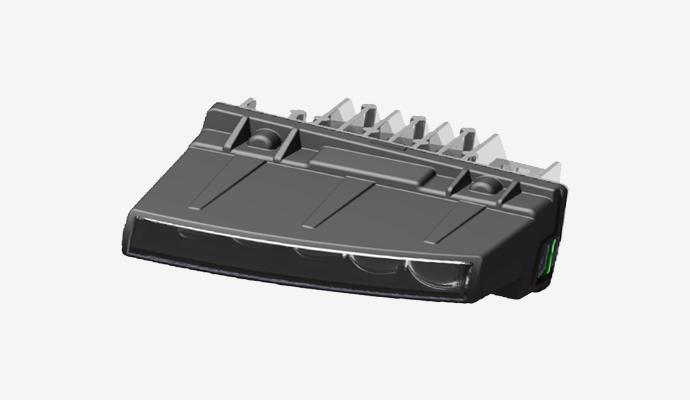

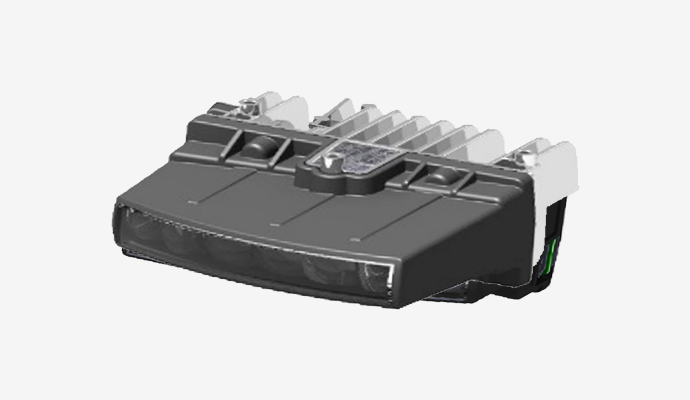

15mm*100mm ultra-narrow HB,LB and ADB lighting moduleUltra-narrow HB,LB and ADB lighting satisfy the needs of sharp and narrow modeling.
- Styling of outer lens can be customized according to styling demands
- HB,LB,ADB(20 segments) can be combined freely
- Outstanding road lighting performance: LB 850lm, HB 1,800lm, ADB 2,000lm, CNCAP>8 mark
- Pass heat dissipation

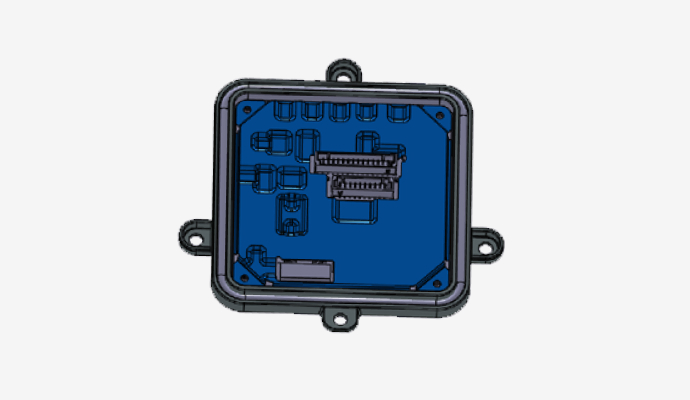

Headlamp driver platform: combined with the different needs of customers, with different configurations of high, medium and low, to meet the design requirements of most of customer's headlamp projects. At the same time, the platform design can quickly match short-cycle development requirements of customers.
-

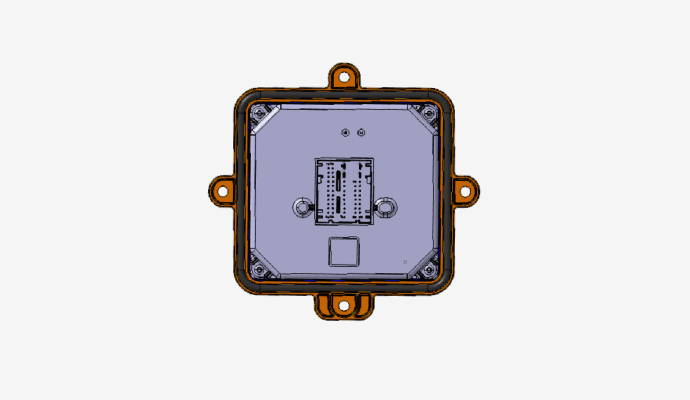

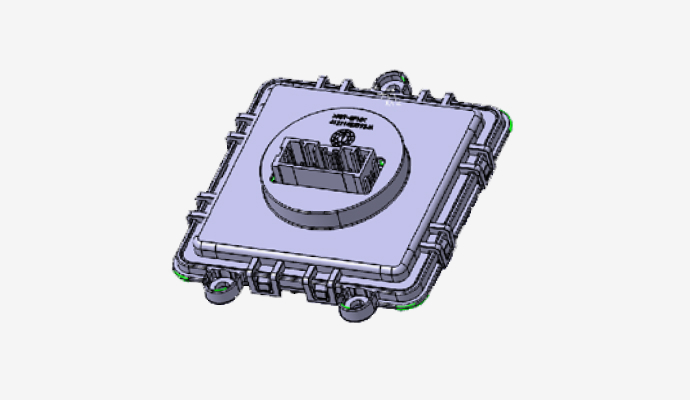

LGDX29Headlight integrated driver -
LGDX41Headlight integrated driver -
LGDX42Headlight integrated driver -
LGDX43Headlight integrated driver
-

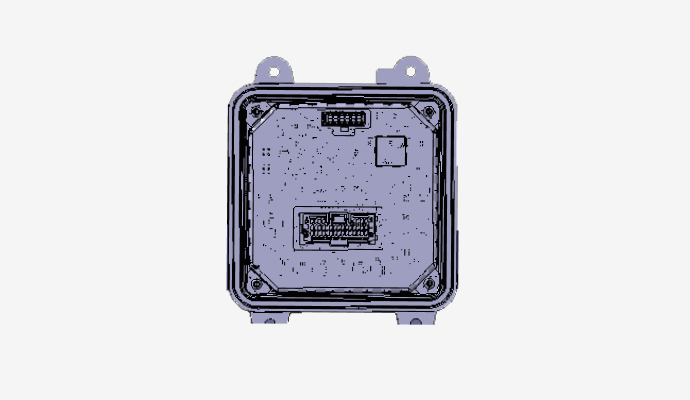

LGDX29 Headlight Integrated Driver
- 6-channel constant current LED driver, maximum current output 1500mA in one channel
- Support functions: low beam (1 channel), high beam (1-2 channel), 24-segment ADB, daytime light/position/TI (3-4 channel)
- Built-in ADB algorithm, support DC aiming motor
- Support sequential TI and dynamic guest welcoming
Adopt CAN bus control, and support FBL, FOTA, UDS diagnosis and network management
- Adaptative LED brightness, temperature control and voltage adjustment
With LED troubleshooting and overheat protection functions
- Safety class of functions: ASIL B
-
LGDX41 Headlight Integrated Driver
- Supporting functions: low beam, high beam, 24-segment ADB, daytime running light/position/TI
- Built-in ADB, AFS, ALS algorithm, and support simulated height sensor
- Support sequential TI and dynamic lighting show
- Adopt CAN bus control, and support FBL, FOTA, UDS diagnosis and network management
- Adaptative LED brightness, temperature control and voltage adjustment
- With LED troubleshooting and overheat protection functions
- Safety class of functions: ASIL B
-
LGDX42 Headlight Integrated Driver
- Supporting functions: high beam, low beam, daytime running light, TI and auxiliary ambient light
- Adaptative LED brightness adjustment
- Adaptative temperature control adjustment
- Adaptative voltage adjustment
- With LED troubleshooting function
- With overheat protection function
- Safety class of functions: ASIL B
-
LGDX43 Headlight Integrated Driver
- Supporting functions: low beam (4-10LED), high beam (4-6LED), 24-segment ADB, daytime running light/position/TI (40W)
- Built-in ADB, AFS, ALS algorithm, and support simulated height sensor
- Support DC aiming motor and stepping motor, sequential TI and dynamic lighting show
- Adopt CAN bus control, support FBL, FOTA, UDS diagnosis and network management, and support network Wake-On Lan
- Bus extension: 3-channel CAN/UART, 1-channel LIN (Host Node)
- Adaptative LED brightness, temperature control and voltage adjustment
- With LED troubleshooting and overheat protection functions
- Safety class of functions: ASIL B
Research and Development Capability
-
Structure Design
-
Optical Simulation
-
Thermal Simulations
-
Mechanical Simulations
-
Mold Flow Simulation
-

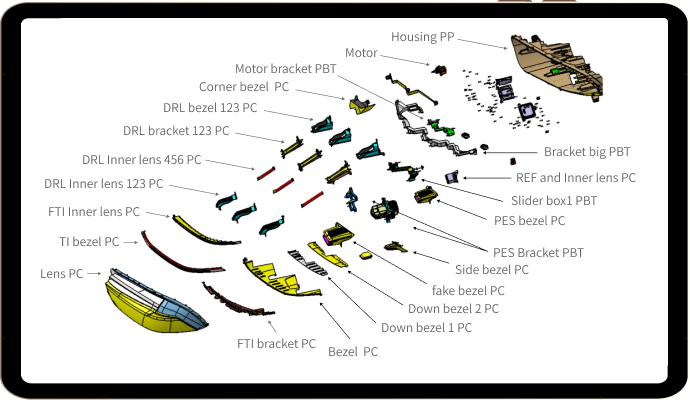

Structure Design
We own the ability and experience in design and development of vehicle light structure of whole series; carry out structure design of vehicle light system and sub-system by impeccable design and development process and appraisal management methods as the guidance of research and development on the basis of digital research and development framework and design software and data management system (PDM) with complete application functions.
-
Optical Simulation
Professional Analysis from Optical Design to Lighting Effect SimulationFull Functions Optical DesignHigh Precision Optical Effect SimulationOptical Design for Laser SystemOptical Design for ADB SystemOptical Design for Pixel Lighting SystemOptical Design for Various Interior Lighting
-

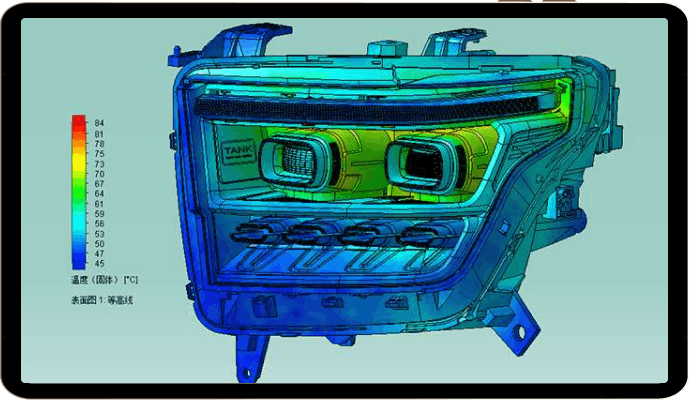

Thermal Simulations
FLOEFDHeat dissipation design for lighting and signaling functionalitiesSunburn simulationsHeat simulationsCondensation simulations
-

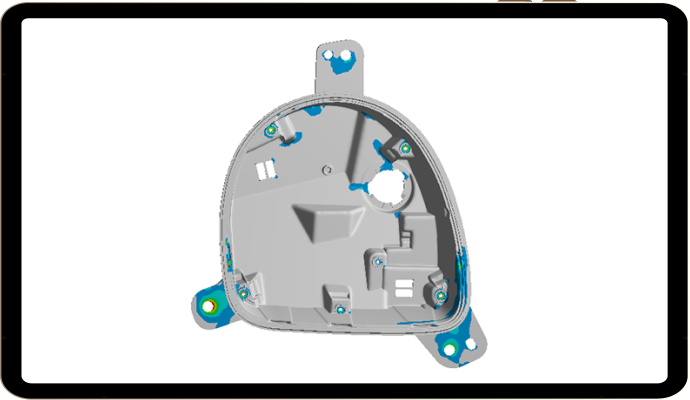

Mechanical Simulations
Mechanical simulation performed with ansysResonance frequency analysisStress analysis of product componentsVibration wear analysis of product componentsAssembly analysis
-

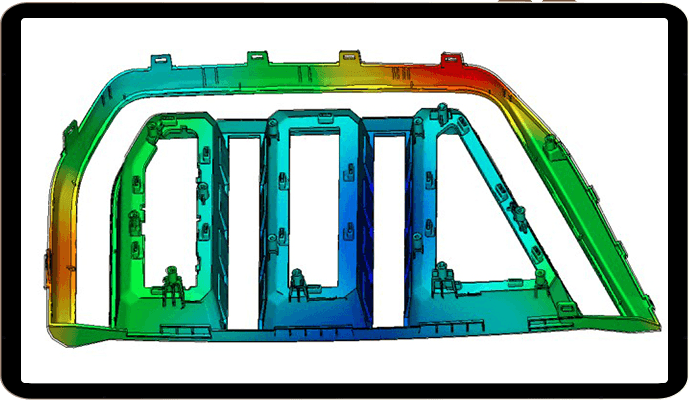

Mold Flow Simulation
All the injection parts will pass feasiblity analysis of injection and mold simulation
Application to Vehicle Models
-

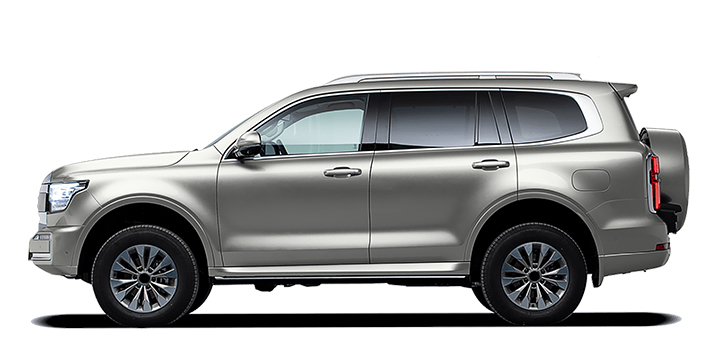

TANK -

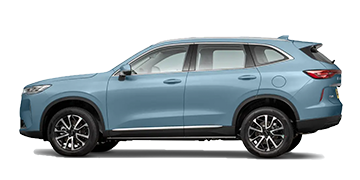

HAVAL -
WEY -
ORA -
GWM POER -

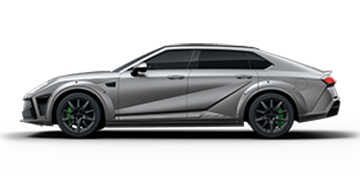

SAR -

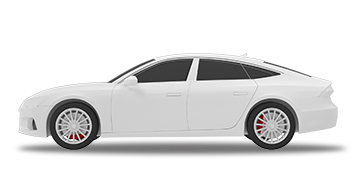

International / Joint Venture Customers
